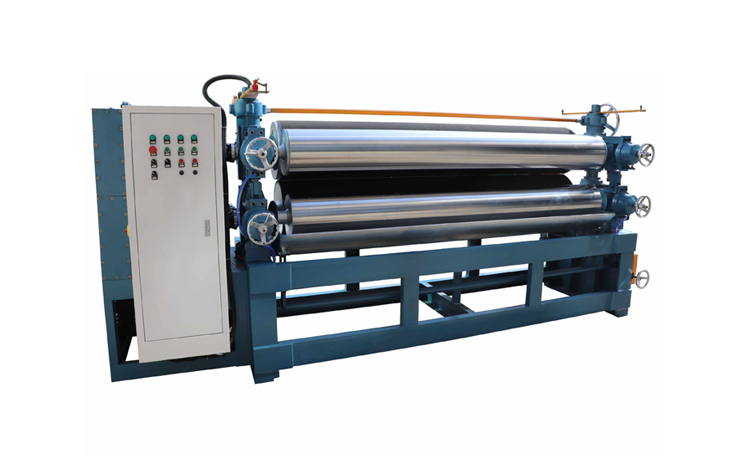

2.7m pneumatic glue coating machine
The glue coating machine is suitable for single-sided or double-sided glue application of man-made boards such as plywood, multi-layer board, veneer board, joinery, etc. The rubber roller is made of excellent rubber, precision processed by lathe and grinder, with uniform glue application and simple operation , The amount of glue can be adjusted and other advantages。
| 涂膠機的參數 | |
|---|---|
| 型號 | 2.7米×Φ415四輥涂膠機 |
| 裝配形式 | 前后裝配 |
| 涂膠形式 | 雙面 |
| 傳動方式 | 鏈輪傳動 |
| 膠輥長度 | 2700 |
| 膠輥直徑 | Φ415（帶絲紋） |
| 擠輥直徑 | Φ297(電鍍） |
| 線速度（m/min） | 30 |
| 主傳動電機（KW） | 7.5 |
| 電壓（V） | 380 |
The glue coating machine is suitable for single-sided or double-sided glue application of man-made boards such as plywood, multi-layer board, veneer board, joinery, etc. The rubber roller is made of excellent rubber, precision processed by lathe and grinder, with uniform glue application and simple operation , The amount of glue can be adjusted and other advantages
